IMPORTANT

Important Safety & Compliance Information

Read this reference guide completely before attempting to operate the unit. Before using this radio, refer to the important operating instructions for safe usage and RF energy awareness and control for compliance with applicable standards and regulations.

Safety and General Information

Your Talkpod Two-Way radio complies with the following RF energy exposure standards and guidelines:

1. Radiocommunications Act 1992 and Radiocommunications Equipment (General) Rules 2021, including Schedule 4 – Human Exposure to Electromagnetic Energy.
2. ARPANSA Radiation Protection Series S-1 (Rev. 1) – Standard for Limiting Exposure to Radiofrequency Fields – 100 kHz to 300 GHz (2021).
3. AS/NZS 2772.2:2016 – Radiofrequency fields, Part 2: Principles and methods of measurement and computation – 3 kHz to 300 GHz.
4. IEC/IEEE 62209-1528:2020 – Measurement procedure for the assessment of specific absorption rate (SAR) of human exposure to radiofrequency fields from hand-held and body-mounted wireless communication devices.
5. International Commission on Non-Ionizing Radiation Protection (ICNIRP) Guidelines for limiting exposure to radiofrequency electromagnetic fields.

Transmit and Receive Procedure

1. Transmit no more than 50% of the time.
2. To receive calls, release the Push-to-Talk (PTT) button.
3. To transmit (talk), press the PTT button in front of the face.
4. Hold the radio in a vertical position with the microphone and other parts of the radio including the antenna at least one inch (2.5 centimeters) away from the nose or lips. Keeping the radio at a proper distance is important to ensure compliance.

1. Body Worn Operation. When worn on the body, always place the radio in a Talkpod-approved clip, holder, holster, case or body harness for this product.

Two-way Radio Operation

1. Use only Talkpod-approved supplied or replacement antennas, batteries and audio accessories. The use of antennas, batteries, or wired or wireless accessories that are not approved by Talkpod may result in RF exposure levels exceeding the applicable Australian RF exposure limits and ARPANSA requirements.
2. For information about Talkpod-approved accessories for your radio model, refer to the product support information supplied with your radio.

Electromagnetic Interference/Compatibility

This radio is designed to comply with the applicable Australian electromagnetic compatibility (EMC) requirements under the Radiocommunications Act 1992 and the Radiocommunications Equipment (General) Rules 2021, including the applicable requirements of the Radiocommunications (Electromagnetic Compatibility) Standard 2017. Always operate the radio in accordance with these instructions to minimise the possibility of electromagnetic interference with other electronic equipment.

To avoid electromagnetic interference and/or compatibility conflicts, turn off your radio in any facility where posted notices instruct you to do so. Hospitals or health care facilities may be using equipment that is sensitive to external RF energy.

When instructed to do so, turn off your radio when onboard an aircraft. Any use of a radio must be in accordance with applicable regulations per airline crew instructions.

Persons with pacemakers, Implantable cardioverter-defibrillators (ICDs) or other active implantable medical devices (AIMD) should:

1. Consult with their physicians regarding the potential risk of interference from radio frequency transmitters, such as portable radios.
2. Turn the radio OFF immediately if there is any reason to suspect that interference is taking place.
3. Do not carry the radio in a chest pocket or near the implantation site, and carry or use the radio on the opposite side of the body from the implantable device to minimize the potential for interference.


Some digital wireless radios may interfere with some hearing aids. In the event of such interference, consult your hearing aid manufacturer to discuss alternatives.

If you use any other personal medical device, consult the manufacturer of your device to determine if it is adequately shielded from RF energy. Your physician may be able to assist you in obtaining this information.

Always check the laws and regulations on the use of radios in the areas where you drive.

1. Give full attention to driving and to the road.
2. Use hands-free operation, if available.
3. Pull off the road and park before making or answering a call, if driving conditions or regulations so require.


Refer to the vehicle manufacturer’s manual prior to installation of electronic equipment to avoid interference with air bag wiring. Do not place a portable radio in the area over an air bag or in the air bag deployment area.

Potentially Explosive Atmosphere

Blasting Caps and Areas

Operational Cautions

Do not use any portable radio that has a damaged antenna. If a damaged antenna comes into contact with your skin, a minor burn can result.

All batteries can cause property damage and/or bodily injury such as burns if a conductive material touches exposed terminals. The conductive material may complete an electrical circuit (short circuit) and become hot.

· Built-in 1000mAh Li-Ion battery. Do not use sharp or conductive tools to remove these batteries.

· Exercise care in handling any charged battery, particularly when placing it inside a pocket, purse or other container with metal objects.

· Do not discard your battery in a fire.

· Do not replace the battery in any area labeled “Hazardous Atmosphere”.

· Do not disassemble, crush, puncture, shred or otherwise attempt to change the form of your battery.

· Do not dry a wet or damp battery with an appliance or heat source, such as a hair dryer or microwave oven.

· If the radio battery contact area has been submerged in water, dry and clean the battery contacts before attaching the battery to the radio.

Licensing Information

Australia

se of UHF CB frequencies in Australia is subject to the Radiocommunications Act 1992 and the Radiocommunications (Citizen Band Radio Stations) Class Licence 2025, as amended. An individual licence is not required to operate a compliant UHF CB radio in Australia, and no licence fee is payable. However, users must comply with all applicable conditions of the Class Licence. The Talkpod F40 Australian version must be operated only on the authorised UHF CB channels and frequencies, and within the applicable transmitter power and operating limits. Do not modify the radio or use it on frequencies, power levels, or operating modes that are not permitted under the applicable Australian radiocommunications requirements. UHF CB frequencies are shared by all users. Always use the radio responsibly and avoid causing harmful interference to other radio services. For current licensing requirements and information, refer to the Australian Communications and Media Authority (ACMA): https://www.acma.gov.au/licences/citizen-band-radio-stations-class-licence

NOTE: Use of this radio outside Australia is subject to the laws and regulations of the country in which it is operated and may be restricted or prohibited.

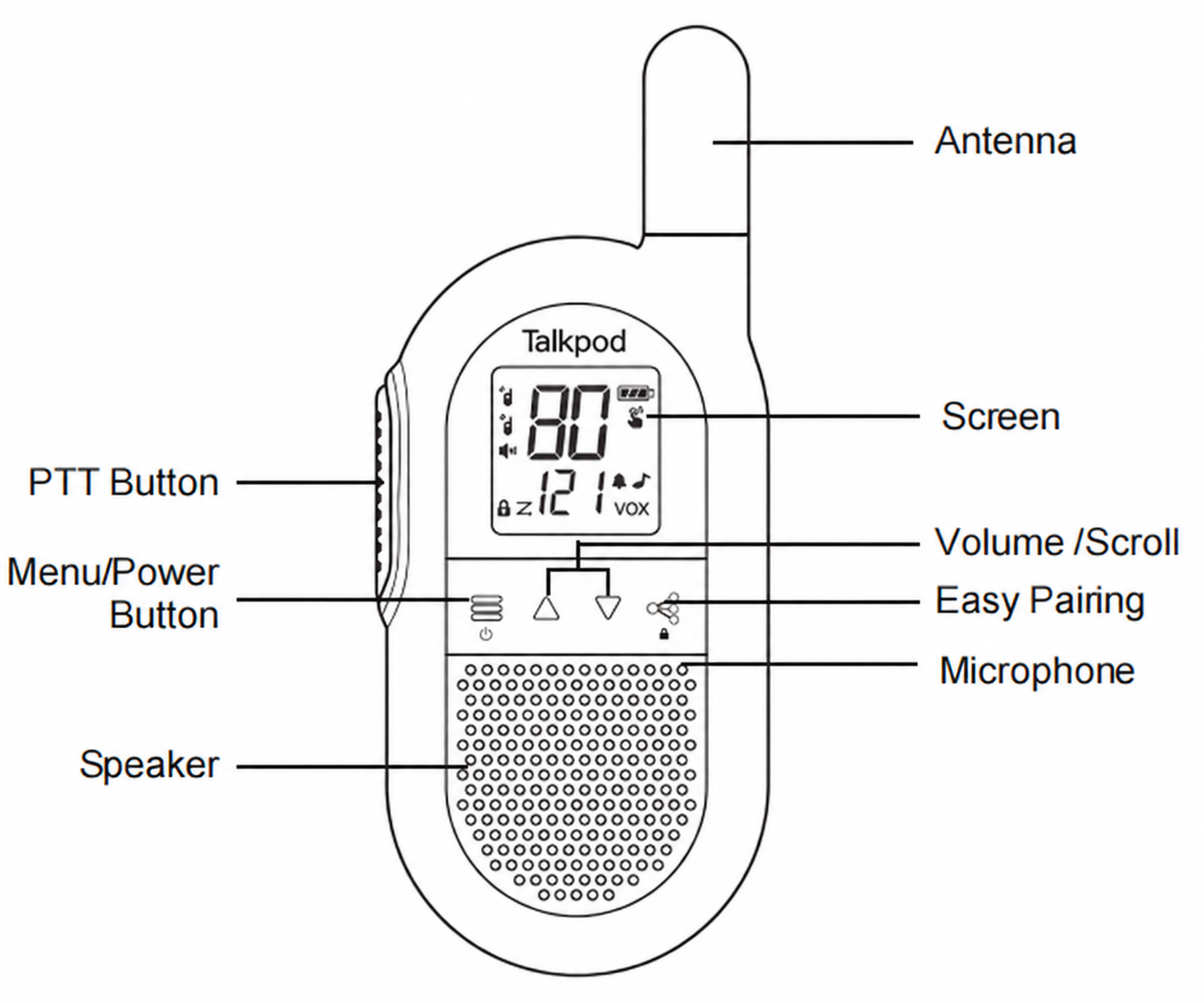

Control Buttons

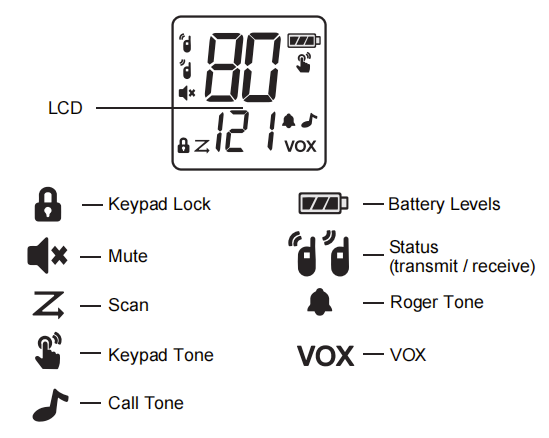

Display Screen

Getting Started

Battery, Belt Clip & Basic Setup

Battery Level and Low Battery Alert

The battery icon shows when battery power is low and blinks when the battery is extremely low. Please charge it immediately.

Battery Charging

Fully charge the transceiver before using it for the first time, or if it has not been used for more than 2 months. The charger automatically restarts charging when the battery voltage drops.

· Use the supplied USB 2-in-1 cable.

· Use a 5 V/1 A output AC adapter.

NOTE: Charging time may differ depending on the current. When you use a lower than 1 A output AC adapter or PC, it may take longer to charge, or the battery may not be charged.

Attaching and Removing the Belt Clip

1. Attach the belt clip to the back of the radio until the clip clicks in place.

2. Attach the belt clip to a pocket or belt strap until the clip clicks in place.

To Remove

3. Push the release tab on top of the belt clip to release the latch.

4. Pull the belt clip away from the back of the radio.

Basic Radio Operations

Read this reference guide completely before attempting to operate the unit.

Turning Your Radio On/Off

Press and hold the [☰⏻] Menu button to turn your radio ON/OFF.

Adjusting the Volume

1. Adjust the volume by pressing the ▲ and ▼ buttons.

2. When the volume reaches level 0, the [mute] icon appears permanently on screen.

Adjusting the Sound (Key Beeps)

Your radio emits a beep each time one of the buttons is pressed, except the PTT button.

Press and hold the ▼ button while turning the radio ON to switch the sound OFF.

To turn this sound ON, turn the radio OFF and ON again without pressing the ▼ button.

Selecting a Channel

In order to speak to someone, both radios must be set to the same channel.

3. Press the [☰]button one time to enter Menu.

4. Press ▲ or ▼ to the required channel. An extended press allows you to scroll rapidly.

5. Press the PTT button to confirm the selection, or press [☰]to continue setup.

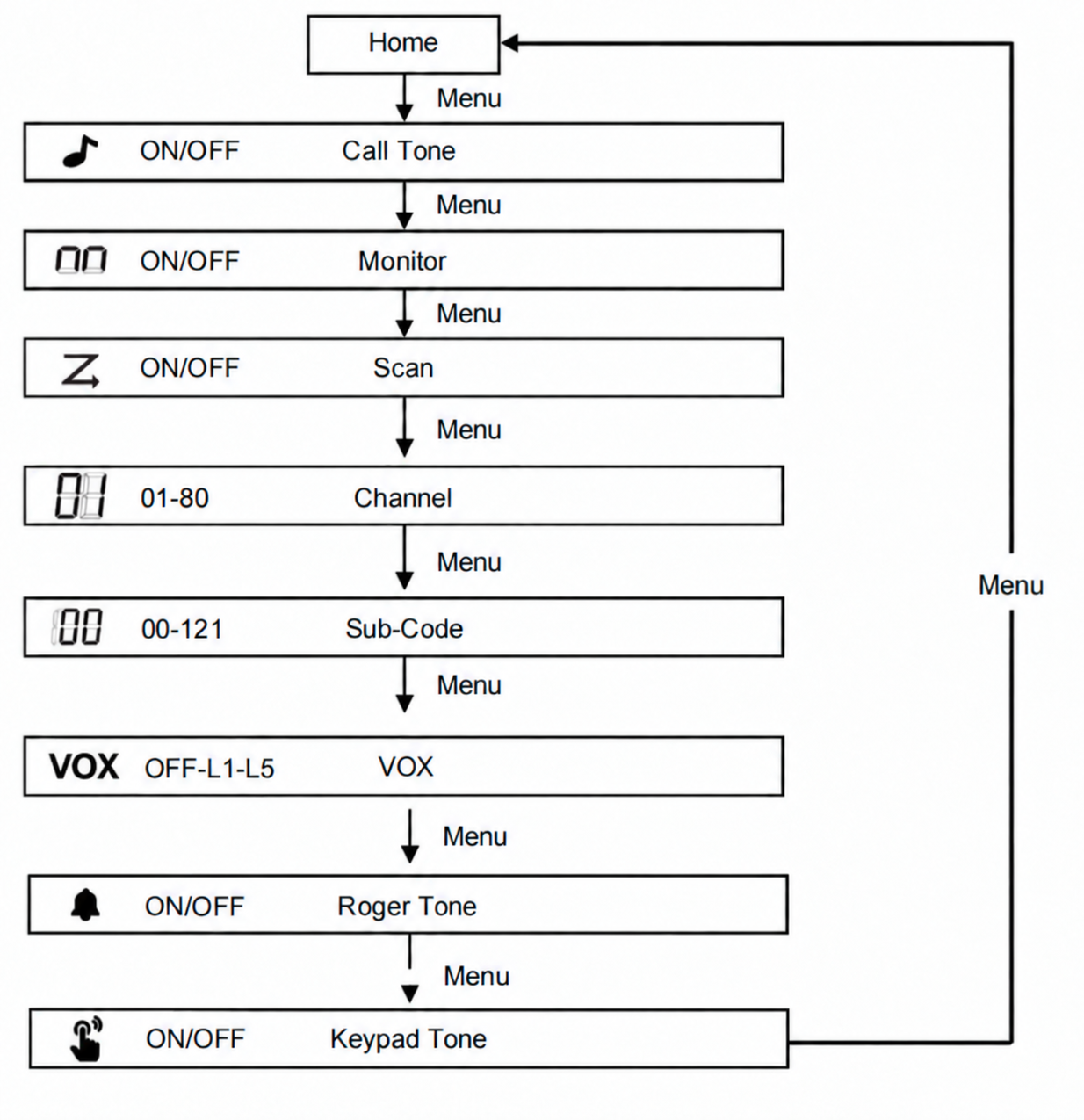

Menu Overview

NOTE: Use the [☰]button to scroll through the menu screen. Press PTT to exit any screen and return to the home screen.

Talking and Listening

To communicate, all radios in your group must be set to the same channel.

1. To talk, press and hold the PTT button. The [Transmit status] icon is shown.

2. When you are finished talking, release the PTT button.

3. When receiving, the [Receive status] icon is shown.

For maximum clarity, hold the radio one inch away from your mouth and speak directly into the microphone. Do not cover the microphone while talking.

Talk Range

Your radio is designed to maximize performance and improve transmission range. Do not use the radios closer than five feet apart.

Push-to-Talk Timeout Timer

To prevent accidental transmissions and save battery life, the radio emits a continuous warning tone and stops transmitting if you press the PTT button for 60 continuous seconds.

Channel Scan Mode

Channel Scan Mode enables your radio to scan for active channels. When activity is detected, your radio lands (stays) on that channel for two seconds. To transmit on that channel, press the [PTT] button. When activity on the landed channel ends, your radio continues scanning other channels.

To turn the channel scan ON:

1. Press the [☰⏻] Menu button two times until the Scan setting appears.

2. Use the setting control to start scanning. Press [☰⏻]or [PTT] button to turn OFF Scan mode.

Key Lock

1. Press and hold the [Keypad lock] button control until the lock icon appears.

2. When in lock mode, you can turn the radio on and off, adjust the volume, send a call tone, receive, and transmit. All other functions are locked.

3. Press and hold the [Leypad lock] button control until the icon disappears to unlock the keypad.

Monitor Mode

Monitor Mode enables you to listen for weak signals on the current channel.

1. Press the [☰⏻] Menu button three times until the Channel Monitor setting flashes and the monitor icon appears.

2. Enable continuous listening. The [monitor icon] continues to appear.

To turn Monitor Mode OFF, press the [Menu/Power] button to return to Normal mode. The monitor icon stops appearing.

Roger Beep

Roger beep sounds to indicate the end of a [PTT] transmission. It can be heard through the speaker when Key Beep is on. It cannot be heard through the speaker if Key Beep is turned off. Press and hold the ▲ button while turning the radio ON to turn Roger Beep ON. Repeat the step to turn Roger Beep OFF.

Easy Pairing

This feature allows a group of radio users to program all their Talkpod F40 radios to the same Channel and Sub-Code (CTCSS/DCS) settings quickly and simultaneously.

Any single radio within the group can be designated as the "Leader's radio", and its current Channel and Sub-Code settings will be transmitted to and copied by all the other radios in the group ("Members' radios").

Important Prerequisites

Before you begin, please ensure the following:

1. Unlock the Radios: For security, the Talkpod F40 automatically locks its keypad after 30 seconds of inactivity. Press and hold the [Lock] button on all radios to unlock them before starting the pairing process.
2. Proximity: Ensure all Member radios are placed near the Leader radio (within effective communication range) during the pairing process.

Step-by-Step Easy Pairing Guide

Step 1: Set Up the "Leader's Radio"

Pick any one radio to be the Leader's radio. Program this radio to your desired Channel and Sub-Code settings (refer to the "Selecting the Channel" and "Selecting the Sub-Code" sections in this user manual).

Step 2: Put All "Members' Radios" into Search/Waiting Mode

On ALL other radios (Members' radios) that you want to program:

1. Press the [Easy Pairing] button once.
2. The display screen will show EP and a blinking --.

Note: The display confirming EP with a blinking -- indicates that the Member's radio is in Easy Pairing waiting mode, ready to receive settings from the Leader's radio.

Best Practice: In a group with multiple radios, have all users take this step at the same time so all Member radios can be programmed in a single operation.

Step 3: Transmit Settings from the "Leader's Radio"

On the Leader's radio:

1. Press the [Easy Pairing] button once. The screen will display EP and a blinking --.
2. Press the [PTT (Push-To-Talk)] button twice.
3. The blinking -- on the screen will become solid, and the TX (Transmit) icon will light up continuously. This indicates that the Leader's radio is actively transmitting (copying) its Channel and Sub-Code settings to all nearby Member radios.


Note on Receiving (Members' Radios): While receiving settings, the Members' radios will display EP with a blinking --, and the RX (Receive) icon will light up continuously.

Important: The pairing transmission process takes approximately 30 seconds. During this process:

1. Do not operate any buttons on either the Leader or Member radios.
2. Exit function is disabled: All buttons and functions are temporarily locked until the pairing transmission is complete.

Step 4: Pairing Completion

1. For Members' Radios: Once the settings are successfully received and copied, all Members' radios will automatically reboot and switch to the newly paired Channel and Sub-Code.
2. For Leader's Radio: After the transmission is complete, the Leader's radio will remain in Easy Pairing waiting mode (displaying EP and blinking --) to allow pairing with additional Member radios if needed. Press the [Menu] button on the Leader's radio to exit.


How to Exit Easy Pairing Mode

If you accidentally enter Easy Pairing mode (screen displays EP and blinking --):

1. Press the [Menu] button to exit immediately and return to normal operation.
2. Note: Other keys, including the PTT button on Members' radios, will not exit this mode.

Important Notes & Troubleshooting

Timing is Critical: The Leader's radio must transmit its settings while all Members' radios are still actively in the Easy Pairing waiting mode (EP and blinking --).

If Pairing Fails: If a Member's radio fails to copy the settings, repeat the steps above starting from Step 2.

Cross-Model & Brand Compatibility Notice

1. Brand Limitation: Easy Pairing is a proprietary Talkpod feature and does NOT support cross-brand pairing (e.g., pairing between Talkpod and Motorola, Cobra, or Midland radios).
2. Model Compatibility: Easy Pairing works seamlessly across different Talkpod models (e.g., pairing a Talkpod F40 with other compatible Talkpod portables).
3. Regional Band Restrictions: Radios from different country/regional versions cannot copy frequency settings between each other due to regional hardware and regulatory frequency differences. Examples: A European PMR446 version cannot be paired with an American FRS version. Australian or Japanese regional versions cannot be paired with European or American models.
4. Sub-Code (CTCSS/DCS) Compatibility: When performing Easy Pairing with radios that do not support Sub-Codes or have Sub-Codes disabled (Sub-Code set to 0 / Off), please ensure the Leader's radio also has its Sub-Code set to 0 before initiating Easy Pairing. When the Sub-Code is set to 0, the radio will receive all transmissions on the selected channel regardless of the transmitting radio's sub-code setting.

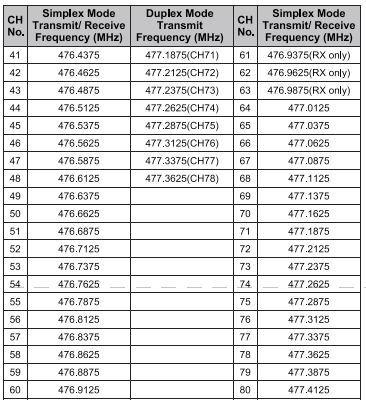

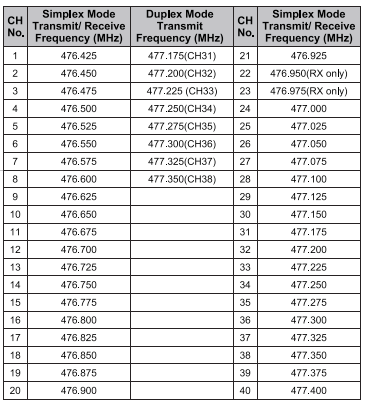

Channel Description

Warranty

Consumer Two-Way Radio Products and Accessories purchased in the USA, Canada, Mexico, Uruguay, and Panama

What Does this Warranty Cover?

Subject to the exclusions contained below, Talkpod Technology Co. ltd. (“Talkpod”) warrants the Talkpod branded consumer two-way radios that operate via Family Radio Service or General Mobile Radio Service (“Products”), and the Talkpod branded or certified accessories sold for use with these Products (“Accessories”), to be free from defects in materials and workmanship under normal consumer usage for the period(s) outlined below. This limited warranty is the exclusive remedy of a consumer and applies to new Products and Accessories purchased by consumers in the United States or Canada that are accompanied by this written warranty.

Who is Covered?

This warranty extends only to the first consumer purchaser, and is not transferable.

What will Talkpod Technology Co., ltd. do?

Talkpod Technology Co., ltd. at its option, will at no charge repair, replace or refund the purchase price of any Products or Accessories that do not conform to this warranty. We may use functionally equivalent reconditioned, refurbished, pre-owned or new Products or Accessories.

What Other Limitations Are There?

Any implied warranties, including without limitation

The implied warranties of merchantability and fitness for a particular purpose, shall be limited to the duration of this limited warranty. Otherwise, the repair, replacement, or refund as provided under this express limited warranty is the exclusive remedy of the consumers and is provided in lieu of all other warranties, express or implied.

In no event shall Talkpod be liable, whether in contract or tort (including negligence), for damages in excess of the purchase price of the product or accessory, or for any indirect, incidental, special or consequential damages of any kind, or loss of revenue or profits, loss of business, loss of information or other financial loss arising out of or in connection with the ability or inability to use the products or accessories to the full extent these damages may be disclaimed by law.

Some states and jurisdictions do not allow the limitation or exclusion of incidental or consequential damages, or limitation on the length of an implied warranty. This warranty gives you specific legal rights, and you may also have other rights that vary from state to state or jurisdiction to anyother.

Products Covered	Length of Coverage
Products and Accessories as defined above, unless otherwise provided for below; Batteries whose fully charged capacity falls below 80% of their rated capacity and batteries that leak	One (1) year from the date of purchase by the first consumer purchaser of the product unless otherwise provided for below.
Products and Accessories that are repaired or replaced	The balance of the original warranty or for ninety (90) days from the date returned to the consumer, whichever is longer.

Exclusions From Warranty Coverage

Normal Wear and Tear

Periodic maintenance, repair and replacement of Products or Accessories due to normal wear and tear.

Abuse & Misuse

Defects or damage that result from improper operation, storage, misuse or abuse, accident or neglect; contact with liquid, water, rain, extreme humidity or heavy perspiration, sand, dirt, extreme heat, or food; commercial or abnormal usage; or other acts which are not the fault of Talkpod.

Use of Non-Talkpod branded Products and Accessories

Defects or damage that result from the use of non-Talkpod branded or certified products, accessories, software or other peripheral equipment.

Unauthorized Service or Modification

Defects or damages resulting from service, testing, adjustment, installation, maintenance, alteration, or modification in any way by someone other than Talkpod or its authorized service centers.

Altered Products

Products or Accessories with serial numbers or date tags removed, altered or obliterated; broken seals or evidence of tampering; mismatched board serial numbers; or nonconforming or non-Talkpod branded housings or parts.

Communication Services

Defects, damages, or the failure of Products or Accessories due to any communication service or signal you may subscribe to or use with the Products or Accessories.

How to Obtain Warranty Service or Other Information?

To obtain customer service or information: support@talkpod.com

For Accessories:

Please call the telephone number designated above for the Product with which they are used.

You will receive instructions on how to ship the Products or Accessories at your expense to Talkpod or a TALKPOD Authorized Repair Center. To obtain service, include: (a) a copy of your receipt, bill of sale or other comparable proof of purchase; (b) a written description of the problem; (c) the name of your service provider, if applicable; (d) the name and location of the installation facility, if applicable; and (e) your address and telephone number.
