A36SE Basic Manual (UK)
Thank you for choosing this Talkpod product.
This product is designed and built with Talkpod’ s state of the art technology and craftsmanship. With proper care, this product should provide you with years of trouble-free operation.
IMPORTANT
READ ALL INSTRUCTIONS carefully and completely before using the transceiver. SAVE THIS INSTRUCTION MANUAL — This instruction manual contains important operating instructions for the transceiver.
For Advanced features and instructions, see the ADVANCED MANUAL on the Talkpod website for details.
Features
- IP54* requirements for dust tight and waterproof protection
- Large capacity battery pack
- Powerful Audio
*Only when the battery pack, flexible antenna, and jack cover are attached.
Explicit definitions
WORD | DEFINITION |
DANGER! | Personal death, serious injury or an explosion may occur. |
WARNING! | Personal injury, fire hazard or electric shock may occur. |
CAUTION | Equipment damage may occur. |
NOTE | Recommended for optimum use. No risk of personal injury, fire or electric shock. |
Supplied accessories

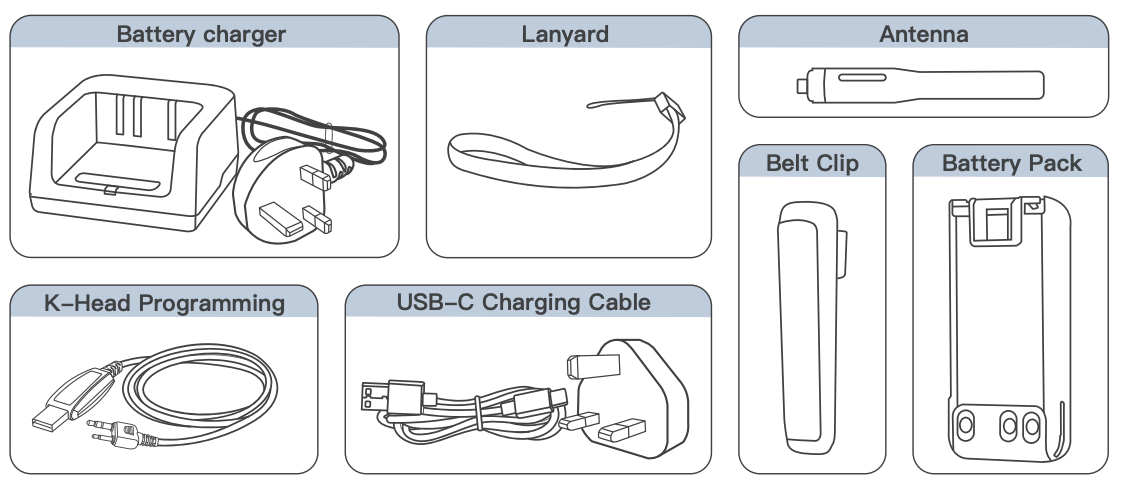

1x A36SE GMRS Radio, 1x TBL12 Li-ion Battery (7.4V, 3200mAh), 1x TAT** Antenna, 1x BC04 Desktop Charger ,1x TPC08 USB-C Charging Cable, 1x TCA06 Power Adapter (5V/1A), 1x TCL05 Belt Clip, 1x TST01 Lanyard, 1xTPC02 Programming Cable, 1x Quick Start Guide / User Manual
NOTE: Some accessories are not supplied, or the shape is different, depending on the transceiver version.
Precautions
DANGER! NEVER operate the transceiver near unshielded electrical blasting caps or in an explosive atmosphere. This could cause an explosion and death.
DANGER! NEVER use or charge Icom battery packs with non-Talkpod transceivers or non-Talkpod chargers. Only Talkpod battery packs are tested and approved for use with Talkpod transceivers or charged with Talkpod chargers. Using third-party or counterfeit battery packs or chargers may cause smoke, fire, or cause the battery to burst.
WARNING RF EXPOSURE! This transceiver emits Radio Frequency (RF) energy. Extreme caution should be observed when operating this transceiver. If you have any questions regarding RF exposure and safety standards, please refer to the Federal Communications Commission Office of Engineering and Technology’s report on Evaluating Compliance with FCC Guidelines for Human Radio Frequency Electromagnetic Fields (OET Bulletin 65).
WARNING! NEVER hold the transceiver so that the antenna is very close to, or touching exposed parts of the body, especially the face or eyes, while transmitting.
WARNING! NEVER operate or touch the transceiver with wet hands. This could cause an electric shock or damage the transceiver.
WARNING! NEVER operate the transceiver with earphones, a headset, or other audio accessories at high volume levels. If you experience a ringing in your ears, reduce the volume or discontinue use.
WARNING! NEVER connect the transceiver to a power source of more than 16 V DC or use reverse polarity. This could cause a fire or damage the transceiver.
CAUTION: DO NOT short the terminals of the battery pack. Shorting may occur if the terminals touch metal objects such as a key, so be careful when placing the battery packs (or the transceiver) in bags, and so on. Carry them so that shorting cannot occur with metal objects. Shorting may damage not only the battery pack but also the transceiver.
CAUTION: DO NOT operate the transceiver unless the flexible antenna, battery pack, and jack cover are securely attached to the transceiver and that the antenna and battery pack are dry before attachment. Exposing the inside of the transceiver to dust or water will result in serious damage to the transceiver. After exposure to water, clean the battery contacts thoroughly with fresh water and dry them completely to remove any water or salt residue.
CAUTION: DO NOT operate the transceiver while driving a vehicle. Safe driving requires your full attention— anything less may result in an accident.
CAUTION: DO NOT use harsh solvents such as benzine or alcohol when cleaning. This could damage the equipment surfaces. If the surface becomes dusty or dirty, wipe it clean with a soft, dry cloth.
CAUTION: DO NOT place or leave the transceiver in direct sunlight or in areas with temperatures below –20°C (–4 ̊F) or above +60°C (+140 ̊F).
CAUTION: DO NOT operate the transceiver if it becomes hot after continuously transmitting for long periods of time. This may damage the transceiver.
NEVER place in an insecure place to avoid inadvertent use by unauthorized persons.
DO NOT push PTT unless you actually intend to transmit.
BE CAREFUL! The transceiver meets IP54* requirements for dust tight and waterproof protection. However, once the transceiver has been dropped, waterproof protection cannot be guaranteed because of possible damage to the transceiver’s case or waterproof seal.
* Only when the battery pack, flexible antenna, and jack cover are attached.
Even when the transceiver power is OFF, a slight current still flows in the circuits. Remove the battery pack from the transceiver when not using it for a long time. Otherwise, the installed battery pack will become exhausted and will need to be recharged or replaced.
Operate the transceiver that complies with your local laws and regulations. Depending on countries and/or regions, transceiver’s output power and/or operations on specific frequencies may be restricted to avoid interferences with existing radio stations or services.
Battery caution
Misuse of Li-ion batteries may result in the following hazards: smoke, fire, or the battery may rupture. Misuse can also cause damage to the battery or degradation of batteryʼs performance.
DANGER! NEVER incinerate used battery packs. Internal battery gas may cause an explosion.
DANGER! NEVER strike or otherwise impact the battery pack. Do not use the battery pack if it has been severely impacted or dropped, or if the pack has been subjected to heavy pressure. Battery pack damage may not be visible on the outside of the case. Even if the surface of the battery does not show cracks or any other damage, the cells inside the battery may rupture or catch fire.
DANGER! NEVER leave the battery pack in places with temperatures above 60 ̊C (140 ̊F). A High-temperature buildup in the battery cells, such as could occur near fires or stoves, inside a sun-heated vehicle, or in direct sunlight for long periods of time, may cause the battery cells to rupture or catch fire. Excessive temperatures may also degrade the pack’s performance or shorten the battery cell’s life.
DANGER! NEVER place battery packs near a fire. Fire or heat may cause them to rupture or explode. Dispose of used battery packs in accordance with local regulations.
DANGER! NEVER solder the battery terminals, or NEVER modify the battery pack. This may cause heat generation, and the battery may burst, emit smoke or catch fire.
DANGER! NEVER let fluid from inside the battery get in your eyes. This can cause blindness. Rinse your eyes with clean water, without rubbing them, and immediately go to a doctor.
WARNING! NEVER use deteriorated battery packs. They could cause a fire.
WARNING! NEVER let fluid from inside the battery cells come in contact with your body. If it does, immediately wash with clean water.
WARNING! NEVER put the battery pack in a microwave oven, high-pressure container, or in an induction heating cooker. This could cause a fire, overheating, or cause the battery cells to rupture.
CAUTION: DO NOT expose the battery pack to rain, snow, saltwater, or any other liquids. Do not charge or use a wet pack. If the pack gets wet, be sure to wipe it dry cloth before using.
CAUTION: DO NOT use the battery if it emits an abnormal odor, heats up, or is discolored or deformed. If any of these conditions occur, contact your Icom dealer or distributor.
CAUTION: DO NOT use the battery pack out of the specified temperature range –20 ̊C ~ +60 ̊C (–4 ̊F ~ +140 ̊F). Using the pack out of this range will reduce the pack’s performance and battery cell life.
CAUTION: DO NOT leave the pack fully charged, completely discharged, or in an excessive temperature environment (above 50 ̊C, 122 ̊F) for an extended period of time. Otherwise, a shorter battery pack life could occur. If the battery pack must be left unused for a long time, it must be detached from the transceiver after discharging. You may use the pack until the remaining capacity is about half, then keep it safely in a cool, dry place in the following temperature range:
–20 ̊C (–4 ̊F) ~ +50 ̊C (+122 ̊F) (within a month).
–20 ̊C (–4 ̊F) ~ +40 ̊C (+104 ̊F) (within three months).
–20 ̊C (–4 ̊F) ~ +20 ̊C (+68 ̊F) (within a year).
BE SURE to replace the battery pack with a new one approximately five years after manufacturing, even if it still holds a charge. The material inside the battery cells will become weak after a period of time, even with little use. The estimated number of times you can charge the pack is between 300 and 500. Even when the pack appears to be fully charged, the operating time of the transceiver may become short when:
• Approximately five years have passed since the pack was manufactured.
• The pack has been repeatedly charged.
The battery cells may deteriorate and swell due to their characteristics if used in an environment and conditions such as: frequently charged, recharged immediately after full charge, used or saved in a hot place, or charged by methods other than the instructions. If the battery pack swells, it has reached the end of its life due to deterioration. Replace it with a brand new one.
Charging caution
DANGER! NEVER charge the battery pack in areas with extremely high temperatures, such as near fires or stoves, inside a sun-heated vehicle, or in direct sunlight. In such environments, the safety/ protection circuit in the pack will activate and stop the charging.
DANGER! NEVER charge the transceiver during a lightning storm. It may result in an electric shock, cause a fire, or damage the transceiver. Always disconnect the power adapter before a storm.
WARNING! NEVER charge or leave the battery in the battery charger beyond the specified time for charging. If the pack is not completely charged by the specified time, stop charging and remove it from the battery charger. Continuing to charge the pack beyond the specified time limit may cause a fire, overheating, or the battery may rupture.
WARNING! Occasionally observe the battery pack condition while charging. If any abnormal condition occurs, discontinue using the battery pack.
CAUTION: DO NOT insert the transceiver with the battery pack attached into the charger if it is wet or soiled. This could corrode the battery charger terminals or damage the charger. The charger is not waterproof.
CAUTION: DO NOT charge the battery pack outside of the specified temperature range: 10 ̊C ~ 40 ̊C (50 ̊F ~ 104 ̊F). Talkpod recommends charging the pack at 25 ̊C (77 ̊F). The pack may heat up or rupture if charged out of the specified temperature range. Additionally, battery performance or
battery life may be reduced.
UK Compliance Information
This product is intended for use in the United Kingdom and is designed to comply with the applicable UK requirements for radio equipment, electromagnetic compatibility, electrical safety, and the restriction of hazardous substances.
Hereby, Talkpod Technology Co., Ltd. declares that the radio equipment type A36SE complies with the applicable UK statutory requirements, including the Radio Equipment Regulations 2017, the Electromagnetic Compatibility Regulations 2016, and the Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012, where applicable.
The full text of the UK Declaration of Conformity is available at:
https://talkpod.com/pages/doc
This equipment generates, uses, and can radiate radio frequency energy. It must be installed and operated in accordance with the instructions provided in this manual. Improper installation, modification, or operation may cause harmful interference to radio communications or may result in non-compliance with applicable regulations.
If interference to radio or television reception occurs, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the affected receiver.
• Connect the equipment to a power outlet on a different circuit from that used by the affected receiver.
• Consult the dealer or an experienced radio/TV technician for assistance.
CAUTION: Changes or modifications to this device not expressly approved by Talkpod Technology Co., Ltd. may void the user’s authority to operate this equipment and may invalidate regulatory compliance.
NOTE: Use of this transceiver may require an appropriate radio licence in the United Kingdom. Always operate this product in accordance with the applicable Ofcom regulations, frequency allocations, and licence conditions.
Hereby, Talkpod Technology Co., Ltd. declares that the radio equipment type A36SE complies with the applicable UK statutory requirements, including the Radio Equipment Regulations 2017, the Electromagnetic Compatibility Regulations 2016, and the Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012, where applicable.
The full text of the UK Declaration of Conformity is available at:
https://talkpod.com/pages/doc
This equipment generates, uses, and can radiate radio frequency energy. It must be installed and operated in accordance with the instructions provided in this manual. Improper installation, modification, or operation may cause harmful interference to radio communications or may result in non-compliance with applicable regulations.
If interference to radio or television reception occurs, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the affected receiver.
• Connect the equipment to a power outlet on a different circuit from that used by the affected receiver.
• Consult the dealer or an experienced radio/TV technician for assistance.
CAUTION: Changes or modifications to this device not expressly approved by Talkpod Technology Co., Ltd. may void the user’s authority to operate this equipment and may invalidate regulatory compliance.
NOTE: Use of this transceiver may require an appropriate radio licence in the United Kingdom. Always operate this product in accordance with the applicable Ofcom regulations, frequency allocations, and licence conditions.
Recommendation
CLEAN THE TRANSCEIVER THOROUGHLY IN A BOWL OF FRESH WATER after exposure to saltwater, and dry it before operating. Otherwise, the transceiver’s keys, switches, and controllers may become unusable, due to salt crystallization, and/or the charging terminals of the battery pack may corrode.
NOTE: If the transceiver’s waterproof protection appears defective, carefully clean it with a soft, damp (fresh water) cloth, then dry it before operating. The transceiver may lose its waterproof protection if the case or the jack cover is cracked or broken, or the transceiver has been dropped. Contact your Talkpod distributor or your dealer for advice.
Trademarks
Talkpod and the Talkpod logo are registered trademarks of Talkpod and Quanshun Communication in China, Japan, the United States, the United Kingdom, Germany, France, Spain, Russia, Australia, New Zealand, and/or other countries.
Talkpod is not responsible for the destruction, damage to, or performance of any Talkpod or non-Talkpod equipment, if the malfunction is because of:
• Force majeure, including, but not limited to, fires, earthquakes, storms, floods, lightning, or other natural disasters, disturbances, riots, war, or radioactive contamination.
• The use of Talkpod transceivers with any equipment that is not manufactured or approved by Talkpod.
CE AND DOC
Hereby, Talkpod Inc. declares that the versions of A36SE which have the CE symbol on the product comply with the essential requirements of the Radio Equipment Directive, 2014/53/EU, and the restriction of the use of certain hazardous substances in electrical and electronic equipment Directive, 2011/65/EU. The full text of the EU declaration of conformity is available at:
• The crossed-out wheeled-bin symbol reminds you that in the European Union, all electrical and electronic products and batteries must be taken to designated collection locations at the end of their working life
• Do not dispose of these products as unsorted municipal waste.
Device Overview

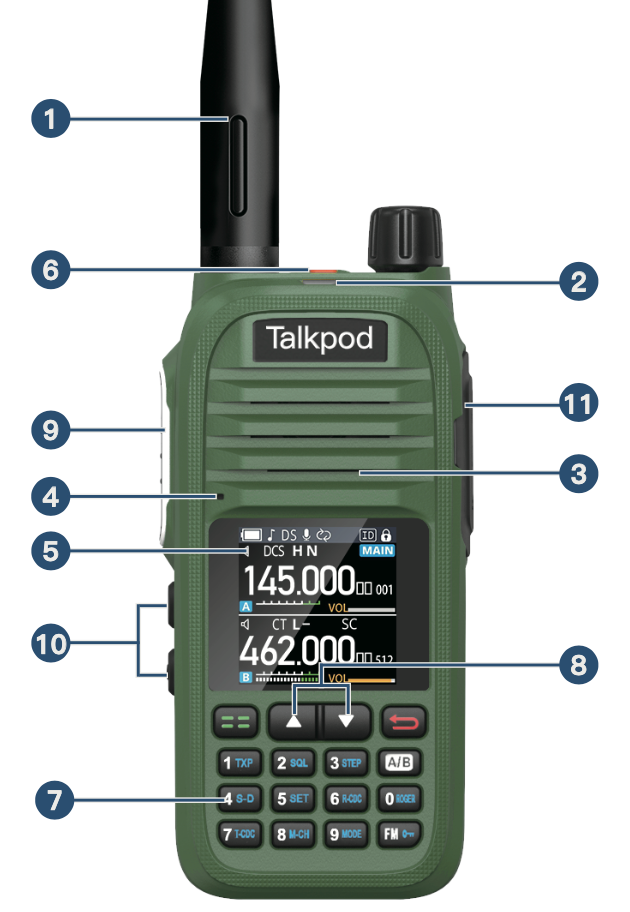

Parts Description
1. AntennaInterface: SMA antenna interface, used for installing the provided antenna or other brand antennas compatible with the SMA interface.
2. Status Indicator Light: Illuminates red during transmission and green when a signal is received. 3. Speaker: Outputs sound.
4. Microphone: Inputs sound.
5. LCD Display: Displays the operational status of the walkie-talkie.
6. SOS Key: Press and hold to initiate an SOS emergency alert; a short press can be customized for other functions.
7. Numeric Keypad: Used for entering frequencies and functions.
8. Up/Down Selector: Adjusts the displayed frequency, menu numbers, or menu content upward or downward.
9. PTT Button: Press the PTT button to transmit; release it to return to receive mode
10. Side Keys 2 and 3: Functions of these side keys can be customized through the menu.
11. Earphone Jack: Used for connecting an external earphone; or to connect a programming cable for programming and software updates via PC.
CAUTION: DO NOT use the transceiver without the jack cover or the optional equipment attached. The transceiver meets IP54 requirements for dust-tight and waterproof protection only when the jack cover or the specifed optional speaker microphone is attached.

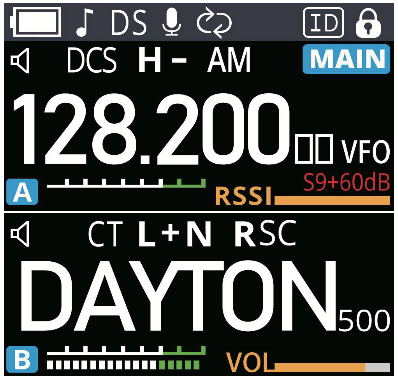

Display Description & Status Icons
Battery status
|
The battery has sufficient capacity.
|
|
|
The battery is exhausted a little.
|
|
|
The battery is nearing exhaustion.
|
|
|
The battery is almost fully exhausted. Immediately charge thebattery pack. *After a while, the icon blinks and the transceiver will beturned OFF.
|
Function Display
|
|
BATTERY ICON
|
Displays the current capacity of the attached battery pack.
|
|
|
R
|
Receive and transmit frequencies are inverted in frequency mode/channel mode. |
|
|
T | Off-network mode, the transmit and receive frequencies are adjusted to the same. |
|
|
SC
|
Special voice encryption status/frequency hopping function. |
|
|
MAIN
|
Main frequency or channel.
|
|
|
AB A Segment B Segment Transmit
|
Indicates the respective frequency segment.
|
|
|
Signal Strength Received
|
Current strength of the transmitted signal.
|
|
|
Signal Strength | Aktuelle Leistung des empfangenen Signals. |
|
|
Modulati on Level
|
Current amplitude of the transmitted audio. |
|
|
VFO |
In frequency mode.
|
| TONE ICONS | Displayed when the Tone function is turned ON, and indicates which Tone function is in use. | |
DS | Enables dual-band standby function, which can simultaneously monitor the two frequencies or channels displayed in standby mode. | |
| VOX ICON | Displayed when the VOX function is ON. | |
| PRIORITY SCAN ICON | Scanning mode. | |
|
|

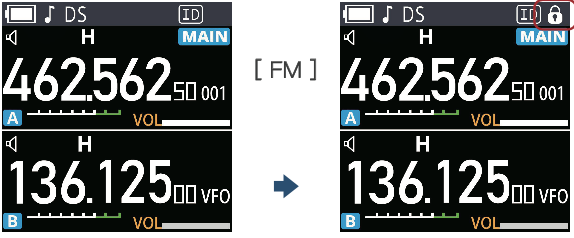

KEY LOCK ICON
|
Keyboard is locked. Press and hold the FM key to unlock.
|
Watch | Enables watch mode. | |
DCS ICONS | Indicates the current sub-audible tone is a digital sub-audible tone. When transmitting, this symbol appears, indicating the transmission of a digital sub-audible tone signal. | |
CTCSS ICONS | Indicates the current sub-audible tone is an analog sub-audible tone.When transmitting, this symbol appears, indicating the transmission of an analog sub-audible tone signal. | |
HIHG POWER ICONS | Current transmission power is high power. | |
LOW POWER ICONS | Current transmission power is low power. | |
N | Indicates that the channel is operating in narrowband mode. | |
+ | Indicates the transmission frequency is the receive frequency plus an offset frequency. | |
- | Indicates the transmission frequency is the receive frequency minus an offset frequency. | |
AM ICONS | Indicates the current frequency is in AM modulation mode. | |
001-256 | In channel mode. | |
Selected | Menu selected item. |
Getting Started
Attaching/Detaching the Battery
Attach or detach the battery pack, as illustrated below.
Battery Installation:
1. Align the battery with the two small notches at the bottom of the walkie-talkie casing.
2. Press the battery towards the metal plate. Simultaneously press down on the small sliders located on the left and right sides at the top (marked with arrow symbols) until you hear a "click," indicating that the battery is securely installed. See illustration for guidance.
Battery Disinstallation:
1. Locate the two small sliders on the top left and right sides of the battery, each marked with an arrow symbol.
2. Press both sliders downward simultaneously to release and remove the battery. Refer to the illustration for details.
NOTE: Even when the transceiver is OFF, a slight current still flows in the circuits. Remove the battery pack or case from the transceiver when not using it for a long time. Otherwise, the attached battery pack or case will become exhausted, and will need to be recharged or replaced.
Charging the Battery
Prior to using the transceiver for the first time, the battery pack must be fully charged for optimum life and operation.
NOTE: BE SURE to turn OFF the transceiver while charging with the supplied battery charger. Otherwise, the attached battery pack cannot be charged.
Charging Instructions:
*Approximately 5-8 hours for the A36SE.
Prior to using the transceiver for the first time，the battery pack must be fully charged for optimum life and operation.
1. Insert the charger’s power plug into a 120V AC outlet.
2. Place the battery or the walkie-talkie with the battery installed onto the charging base; alternatively, connect the USB charging cable to the battery s USB port.
1. Ensure that the charging indicator light turns red, signaling that charging has begun.
2. Charging typically takes about 8 hours. When the indicator light turns green, it indicates that the battery is fully charged.
NOTE: BE SURE to turn OFF the transceiver while charging with the supplied battery charger. Otherwise, the attached battery pack cannot be charged. This product package does not include a Desk Charger. Charging is primarily conducted via USB-C. A compatible Desk Charger may be purchased separately from the official website at www.talkpod.com.
Battery Conditioning and Charging Safety
1. Initial Battery State & Your First Charge Due to international aviation and maritime safety regulations, lithium batteries cannot be shipped fully charged (they are typically restricted to below 60% capacity before leaving the factory). Combined with transit and warehouse storage times, your A36SE may arrive with a battery level below 20%, or even completely depleted.
Official Recommendation: To fully activate the battery's internal chemical properties, ensure maximum operating time, and protect its long-term health, we strongly recommend charging your device to 100% before powering it on for the first time.
2. USB-C Fast Charging & Temperature Warning When charging the battery using the side USB-C port, you will notice that the two metal contacts on the back of the battery become hot. Please rest assured that this is an intentional industrial design for fast charging and efficient heat dissipation.
These two metal contacts (which are also used for the optional desktop drop-in charger) act as a heatsink to quickly expel internal heat. This design prevents the battery from triggering its internal "overheat protection" mechanism, which would otherwise pause or significantly slow down the charging process.
CRITICAL SAFETY WARNING:
DO NOT TOUCH THE CONTACTS: During USB-C fast charging, the surface temperature of the back metal contacts can exceed 80°C (176°F) due to concentrated heat dissipation. Absolutely do not touch these metal contacts with your bare hands during or immediately after charging to avoid burns.
Keep Away from Children: Always place the radio on a safe, dry surface out of reach of children and pets while charging.
Pro Tip for Faster Charging: To minimize heat generation and achieve the fastest possible charging speed, we strongly recommend turning off the radio's power while it is charging.
Attaching and Detaching the Belt Clip

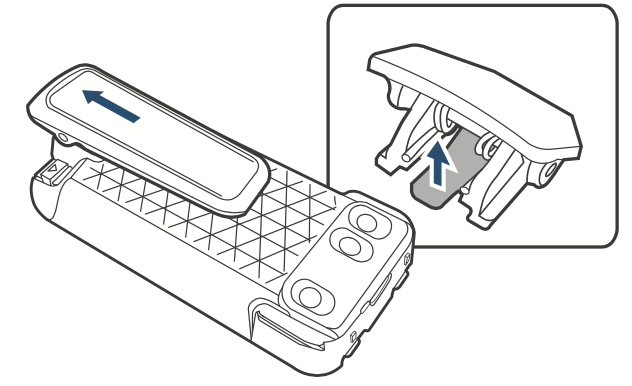

Attaching the Belt Clip:

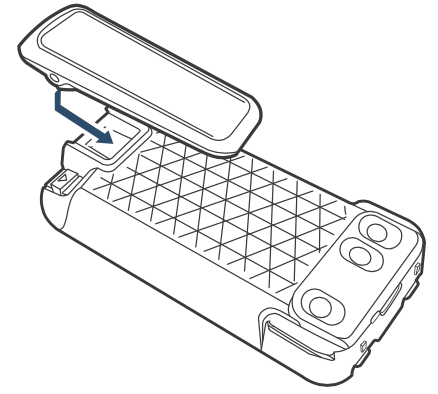

1. Remove the battery. Slide the belt clip into the smooth slot on the back of the battery.
2. Press downward to secure the belt clip in place.
Detaching the Belt Clip:
1. Remove the battery. Press on the elastic plastic part in the middle of the belt clip towards the direction of the walkie-talkie.
2. While holding it, pull the belt clip upward to detach it.
Attaching the Antenna
Attaching the Antenna
1. Hold the base of the antenna and screw it clockwise into the antenna socket on the top of the walkie-talkie until tight. Detaching the Antenna
2. To remove the antenna, unscrew it counterclockwise.
Power Switch / Volume Control
Power Switch Operation:
1. To turn on the walkie-talkie, rotate the power switch knob clockwise.
2. To turn off the walkie-talkie, rotate the power switch knob counterclockwise.
Volume Adjustment:
1. The volume control knob is the same as the switch knob. Rotate it clockwise to increase the volume and counterclockwise to decrease it.
BASIC OPERATION
Receiving
The following are basic settings for receiving.
- Adjusting the squelch level
- Selecting the Frequency selecting mode
- Selecting the operating band
- Selecting the operating mode
- Setting a frequency
Adjusting the squelch level
Noise squelch enables the audio to be heard only while receiving a signal that is stronger than the set level. A higher level blocks weak signals, which enables you to receive only stronger signals. A lower level enables you to hear weak signals.
Throughout this document, “Noise squelch” is simply called “Squelch.
1. The noise squelch function allows audio to be heard only when receiving signals that are above a set threshold.
2. Higher levels block weaker signals, enabling reception of only stronger signals.
3. Lower levels allow the reception of weaker signals.
4. This product s squelch settings range across 10 levels: 00, 01, 02, 03, 04, 05, 06, 07, 08, 09. 5. In this document, "Noise Squelch" is simply referred to as "Squelch".
To adjust the squelch settings:

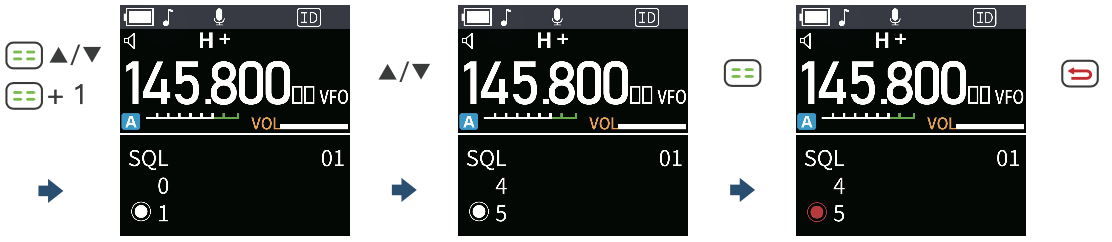

1. Press the menu button.
2. Use the up arrow to navigate to Menu 01.
Note:
1. The principle of setting the squelch level is based on the environment and requirements of use.
2. When a greater communication distance is required, which weakens the received signals, a higher sensitivity is needed, and thus a lower squelch level should be set; for example, set to Level 1.
3. For shorter communication distances with stronger received signals, sensitivity can be decreased by setting a higher squelch level, which reduces noise; for example, set to Level 9.
4. If intermittent transmission occurs, indicating weak signal reception, or if the communication distance changes during a conversation making it hard to hear, then lower the squelch level to increase sensitivity; for example, adjust from Level 8 to Level 2.
Selecting The Frequency Mode
The transceiver has frequency selecting modes, as described below:
In standby mode, long-press the [Menu] key to toggle between Frequency Mode and Channel Mode.
Frequency Mode
1. In standby mode, long-press the [Menu] key to switch to CH mode.

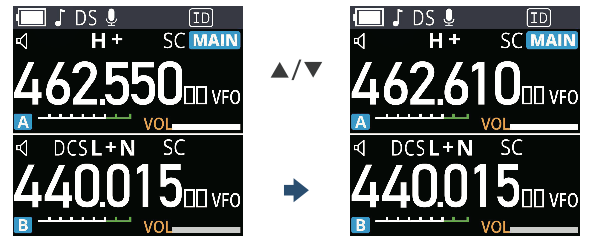

2. Use the [Up/Down] keys to change the frequency or directly input the desired full frequency using the numeric keys.
Channel Mode
1. In standby mode, long-press the [Menu] key to switch to CH mode.
2. In this mode, use the [Up/Down] keys to change the channel number or directly input the desired channel using the numeric keys. At least one memory channel must be programmed; otherwise, you cannot enter this mode.
3. In Channel Mode, long-press the [Back] key to toggle between Channel Name Mode, Channel Frequency Mode, and Channel Number Mode.
Monitor Function

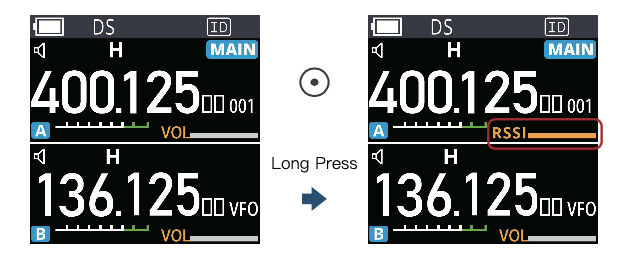

The Monitor function is used to listen to weak signals without changing the squelc setting
1. Press and hold [Side Key 3] to enter Monitor mode (instant squelch open).
NOTE: While monitoring, the transmission light on top of the intercom glows green.
Selecting the operating band Select the operating band in the VFO mode, as shown below.
1. Repeatedly push [Menu] to select the VFO mode.
· The selected frequency is displayed.
2. Repeatedly push to select the operating band, as shown below.
Using the FM Radio Function

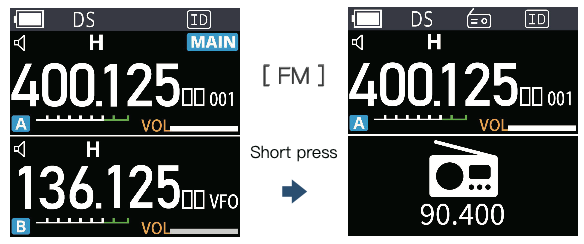

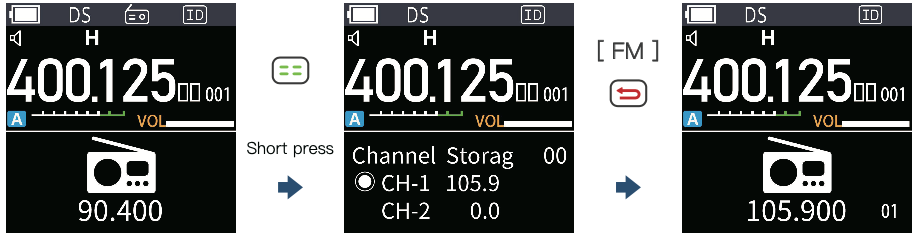

1. In standby mode, press the [FM Key] to enter Radio Mode. In this mode, you can use the up and down keys to change the reception frequency, or directly enter the desired frequency.

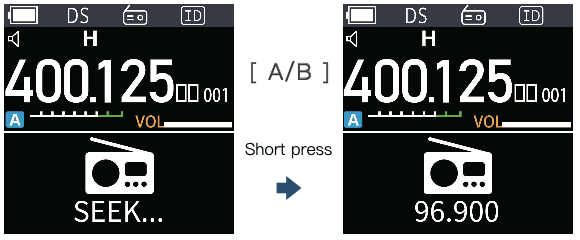

2. Press [AB] briefly to search for the next frequency.
3. In Radio Mode, a short press of the [Menu Key] will save the current frequency as a channel, while a long press will toggle between the radio's frequency mode and channel mode.
4. Press the [FM Key] again to exit Radio Mode.
Note: Directly input the frequency using the keypad (frequency range: 65.000~108.000MHz).
Selecting a Tuning Step
In VFO (Variable Frequency Oscillator) mode, selecting the appropriate tuning step is crucialfor precise frequency adjustments and effective scanning. The A36SE provides a variety of tuning steps to suit diverse communication needs, ensuring both flexibility and precision.
Access Tuning Step

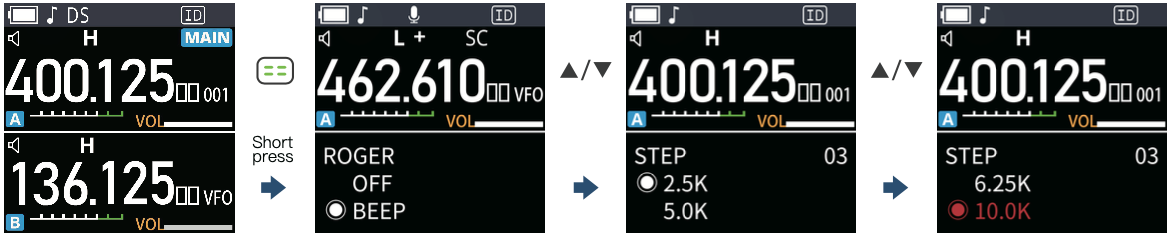

1. In VFO Mode, press the MENU button to access the MENU Page.
2. Use the Up/Down Key to navigate to Menu Option 03.
3. Use the MENU Key and UP/DOWN Key to select the tuning step you need.
Note: The selected tuning step will be applied to the VFO scan function.
Exit Set Mode
Push [Back] to exit the Set mode.
Detailed Tuning Steps and Their Uses
Tuning Step (kHz) | Typical Use |
5 | Fine tuning for precision frequency control |
10 | Standard amateur radio frequency steps |
15 | Slightly broader tuning for quick adjustments |
20 | Useful for commercial broadcasting tuning |
25 | Standard public service band tuning |
30 | Broad tuning for scanning wide frequency ranges |
50 | Rapid scanning across bands |
100 | High-speed scanning for quick searches |
125 | Ultra-wide adjustments for specialized applications |
200 | Maximum range scanning for extensive searches |
This comprehensive overview includes all the necessary steps to access and configure the tuning steps on the A36SE, along with a detailed table that outlines their specific applications. By following these instructions, users can select the optimal tuning step to enhance their device's performance for both transmission and scanning activities.
Setting a Frequency

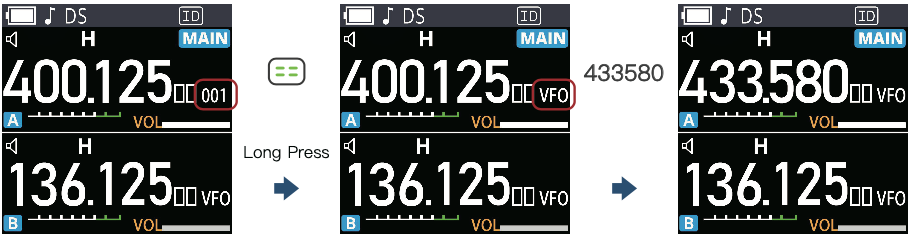

Select VFO Mode
Repeatedly press the MENU Button to select the VFO mode.
Set Frequency
Use the ten-key pad to directly input the desired frequency.
Example:Set 433.580 MHz
To set 433.580 MHz, press [4], [3], [3], [5], [8], [0].
Change Frequency

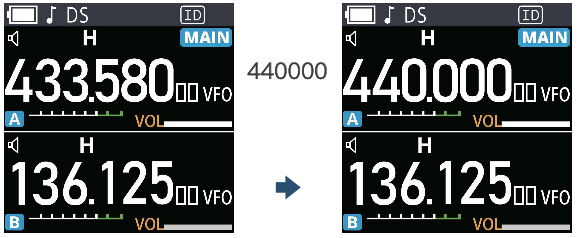

Examples:To change from 433.580 MHz to 440.000 MHz (for frequencies under 10 MHz),press [4], [4], [0], [0],[0], [0].
Transmitting
Making a simplex call
WARNING! NEVER transmit for long periods of time. During prolonged transmissions at high power or mid-power, the transceiver radiates heat to protect itself from overheating. The transceiver's chassis will become hot and may cause a burn.To prevent the transceiver's overheating, the default setting of the time-out timer function is set to 5 minutes. Be careful when the time-out timer function is turned OFF orset to a long time period, and you transmit for long periods.
CAUTION: DO NOT operate the transceiver where heat dissipation will be obstructed if the transceiver is also being charged with an external power supply. Poor heat dissipation may cause a burn, warp the casing, or damage the transceiver.
CAUTION: DO NOT transmit without an antenna.
NOTE: When the transceiver becomes hot, the transceiver s heat protection function gradually reduces the output power to approximately 2.5 watts, then it stops transmission after that. This is done to protect the transceiver itself until it can cool down.
NOTE: You can transmit on only the amateur frequency bands.
IMPORTANT: Before transmitting, monitor the operating frequency to make sure transmitting won t cause interference to other stations on the same frequency.
Making a simplex call

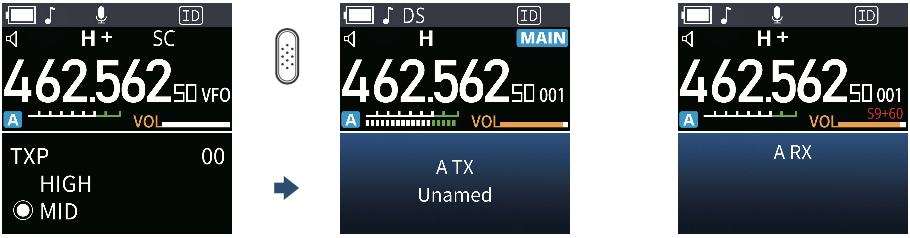

1. Use the keypad to enter your operating frequency or hold down the menu key to switch to channel mode and select your frequency.

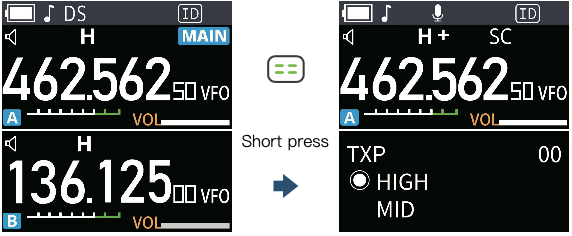

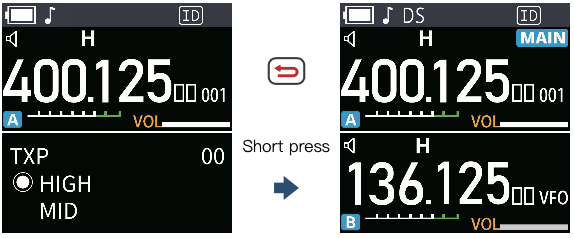

2. Press the menu button and choose the menu option 00 to set your transmission power.

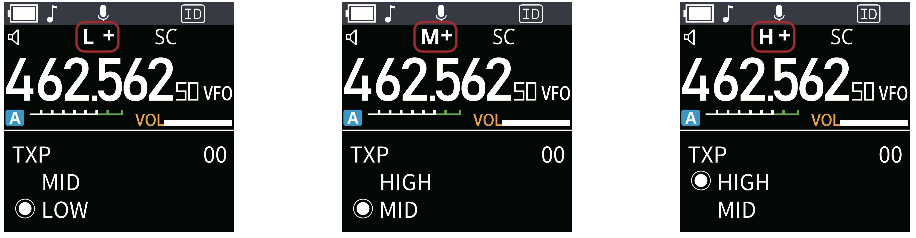

· Note: Select a power level that suits your operating requirements.
· When selecting medium or low power, "M" or "L" is displayed.
· When selecting high power, the power icon shows "H".
3. Hold down the [PTT] button to transmit, and speak into the microphone at your normal voice level.
· The TX/RX indicator lights red.
· The S-meter displays the output power level.
4. Release the [PTT] button to receive signals.
TIP: To maximize the readability of your signal
1. After pushing [PTT], pause briefly before you start speaking.
2. Hold the microphone 5 to 10 cm (2 to 4 inches) from your mouth and speak normally.
Note: Lower output power during short-range communications may reduce the possibility of interference to other stations.
· When the TBL12 is attached: Approximately 5 W (High) /2.5 W (Mid) /0.5 W (Low)
Lock Function
The lock function prevents accidental frequency changes and unnecessary function access
Lock Your Radio
1. Hold down the [FM] key until you hear a voice prompt to toggle the Key Lock function ON or OFF.
2. When activated, the screen displays a " " icon

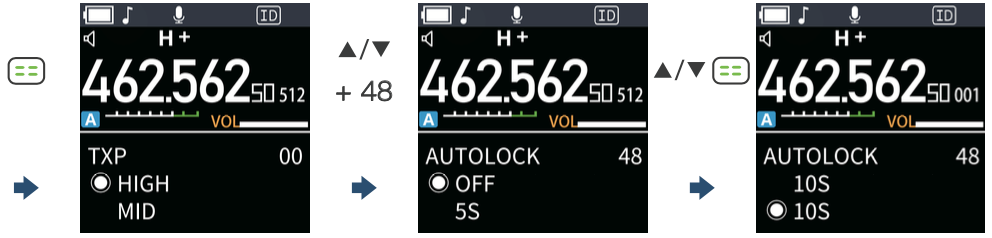

Note: The AutoLock feature can be set in menu 48.

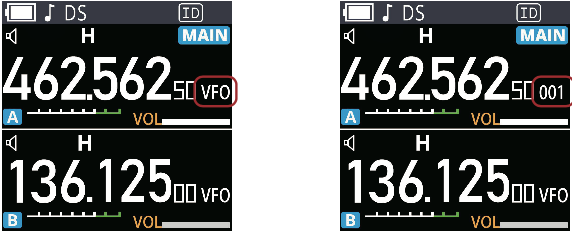

Entering Memory channels
The transceiver has a total of 666 Memory channels to save often-used frequencies. In the Memory mode, you can quickly select the saved memories. This section describes the basic channel content entry.

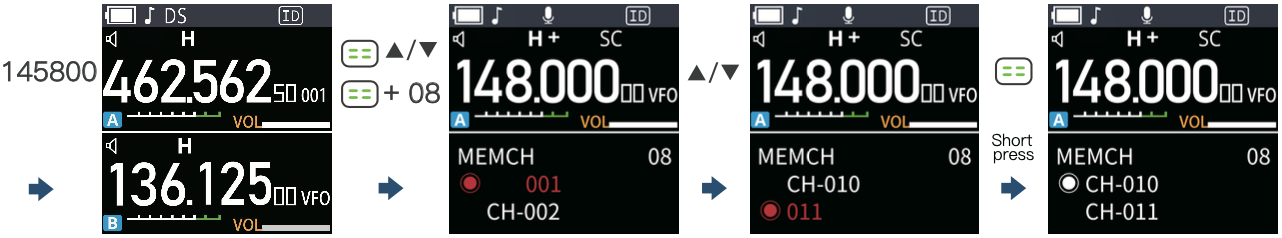

Example: Entering 145.800 MHz into Channel 11

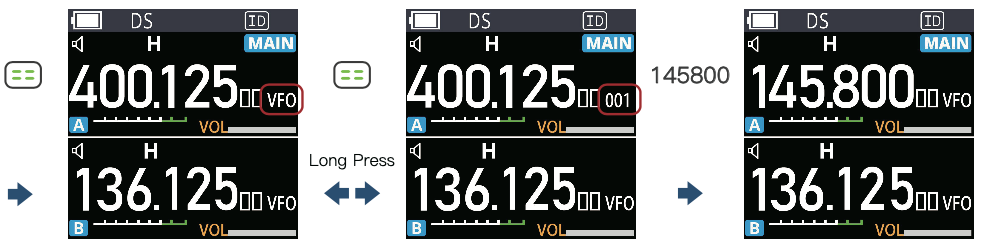

1. Press and hold the menu button to switch to VFO mode.
2. Enter 145.800 on the keypad, and it will be displayed on the screen.
3. Briefly press the menu button and press the "UP" key to navigate to menu option 08.
4. Press the "UP" key to find CH-11.
5. Press the menu button to save.
Clearing Memory channels
Clear Memory channel content that is no longer in use, as shown below.

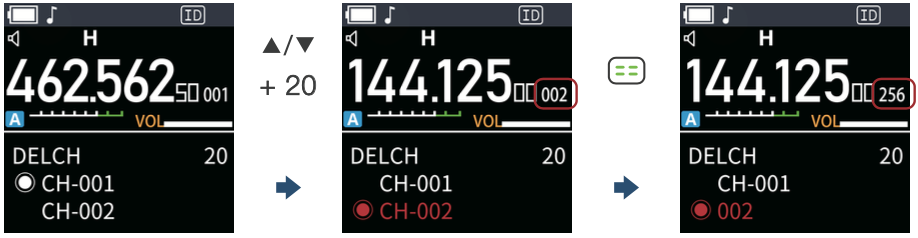

1. Press the Menu button briefly and press the Up button to go to menu option 20.
2. Press the Up button to find the channel you want to delete.
3. Press the Menu Key to save.
SCANNING FUNCTION
Scanning is a versatile function that can automatically search for signals. A scan makes it easier to locate stations to contact or listen to, or to skip unwanted channels or frequencies.
This section describes the basic scan operation. See the Advanced manual for details.
Scanning in VFO Mode

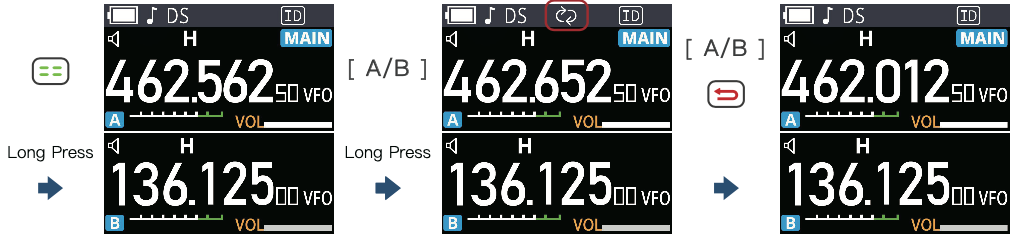

1. Hold on MENU Key to select the VFO mode.
2. Hold on the A/B button until you hear scanning begin to launch scanning.
3. Hold on the A/B Button or press BACK Key to stop scanning.
3 Scan function Tone Operated, Carrier Operated & Search
Before using the scan function, you must first determine how the radio should continue scanning after detecting a signal. You can choose one of the following modes:
Tone Operated (TO) Mode:
The radio stops scanning and remains on the same frequency when it detects a signal. After staying in the stopped state for approximately 5 seconds, even if the signal is still present, the radio will continue scanning.
Carrier Operated (CO) Mode:
The radio stops scanning and stays on the same frequency when it detects a signal. It will continue scanning once the signal disappears. There is a 2-second delay between the signal disappearance and the resumption of scanning to allow time for response transmission.
Search (SE) Mode:
The radio exits scanning and stays on the frequency when it detects a signal.
How To Set These Mode:
1. Press The Menu Button

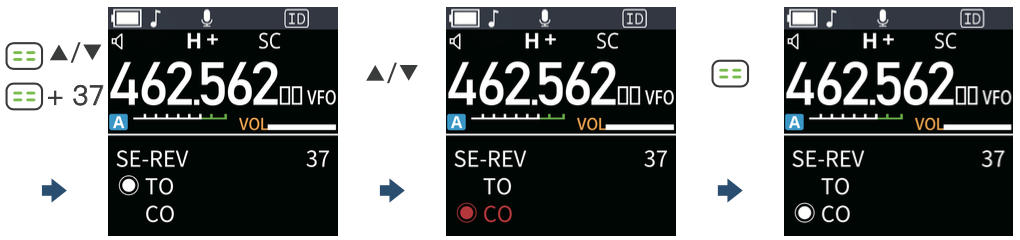

2. Press The "Up" Button multiple times to Menu Option 37.
3. Use the "Up & Down" to choose your scan function.
4. Press the "MENU" to save your choice.
Copy the frequency
1. Repeatedly push MENU to select the VFO mode.

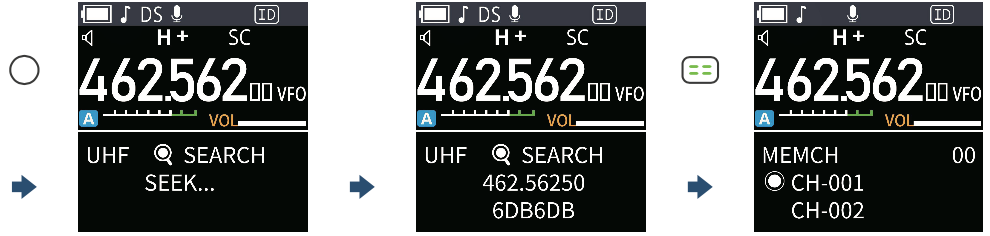

2. Hold down the side key 2 until the screen shows the "seek & search".
3. After the screen displays the frequency and sub-audio, you can press the [menu key] again to store.
DTMF CODE
Dual-tone multi-frequency (DTMF) signaling is a method used for telecommunication signaling over analog telephone lines. It is employed for various applications including automated dialing, remote control of systems, and as an access method for secure communications. Each DTMF code is a combination of two specific frequencies, representing a unique digit or character, enabling precise and reliable command transmission.
DTMF Code Entry and Transmission Guide
Master Your DTMF Code

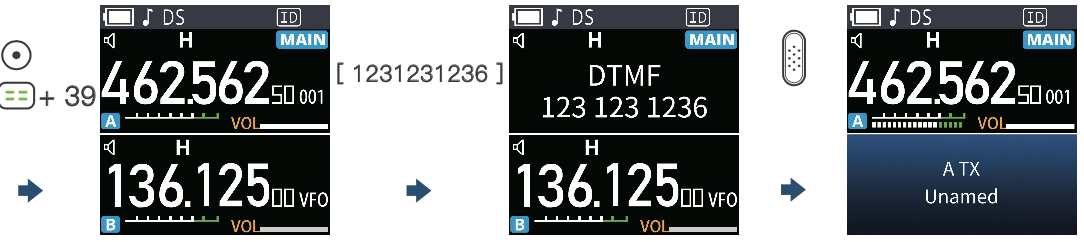

1. Access the DTMF code editing interface.
2. Use the keypad to enter the DTMF code you need to send.
3. After completing the input, press the PTT button to transmit the code.
Note: · If the code is fewer than 6 digits, press the FM key to finish.
· In edit mode, press Side Key 3 briefly to delete the code.
· If the code is cleared, press Side Key 3 again to exit DTMF edit mode.

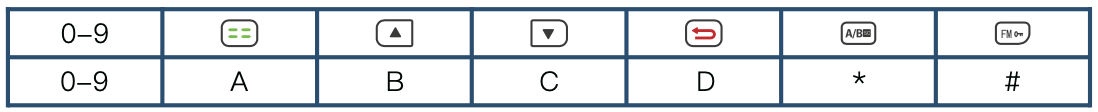

Note: The corresponding codes are as follows.
Customizing the short press of Side Key 3 to quickly enter DTMF mode is only supported through menu item 42.
SUB-AUDIO
CTCSS (Continuous Tone Coded Squelch System)
Is a technology that adds a frequency (67-254.1Hz) lower than the audio frequency to the audio signal for transmission. It is also known as sub- audio because its frequency range is below the standard audio, i.e., less than 300Hz.
CDCSS (Continuous Digital Coded Squelch System)
Is a continuous digital coded squelch system that serves the same purpose as CTCSS but uses digital encoding as the condition for determining whether the squelch is open. It consists of a fixed code group that is continuously transmitted. It is also called sub-audio digital or digital sub-audio because its frequency is also below 300Hz.
In the non-standard analog sub-audio editing state, non-standard sub- audio can be directly input. You can set CTCSS and CDCSS in the Menu 3 to Menu 9.
AIRBAND
When the device s working frequency range is between 108-136 MHz, it automatically enters AM aviation reception mode, with the channel status displaying AM This mode is primarily used for receiving AM modulated aviation signals.
Receive the Airband Frequency
1. Hold the Menu Button to switch to the frequency mode.

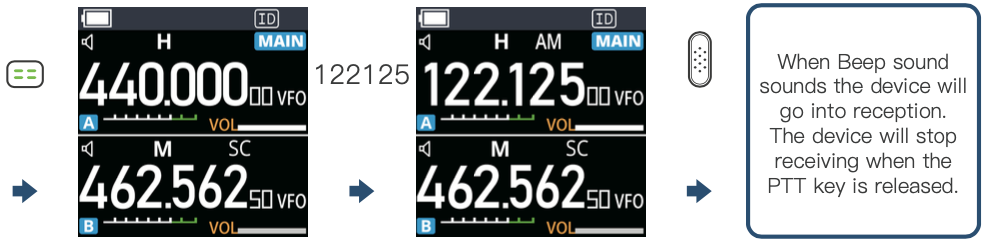

2. Press [1], [2], [2], [1], [2], [5]. When the Icon AM is shown, Airband Mode is successfully opened.
3. Hold the PTT Button until the beep sound shows up.
Note：
Signal Strength: The strength of the aviation band signal may be affected by factors such as distance, weather, and terrain. If the signal is weak, try adjusting the antenna direction or position.
Frequency Range: Ensure your device supports the aviation band's frequency range.
Legal Regulations: In some regions, using aviation band receiving devices may require specific licenses or compliance with relevant laws and regulations. Be sure to understand the local rules before use.
MAINTENANCE
The following chart is designed to help you correct problems that are not equipment malfunctions. If you are unable to locate the cause of a problem or solve it through the use of this chart, contact your nearest Talkpod Dealer or Service Center.
RESETTING
If the transceiver has a malfunction caused by an external factor such as static electricity, reset it using the Partial Reset or All Reset function.
BE CAREFUL! An All Reset clears all programming and returns all settings to the factory defaults.
Partial Reset
1. Press The Menu Button.

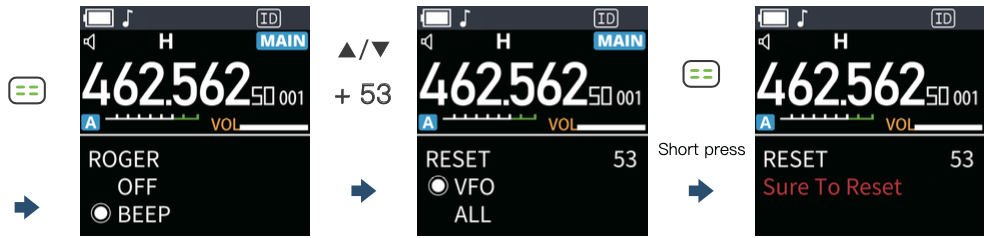

2. Press The "Up" Key multiple times to select Menu Option 53.
Our Reset Function gives you VFO reset and All setting reset.
TIP: A Partial Reset resets the operating settings to their defaults without clearing the following:
· Memory Channel contents
· Scan Edge contents
· Call Channel contents
· DTMF memory contents
· Home Channel settings
Troubleshooting
The transceiver does not turn ON.
The battery is incorrectly installed. → Remove the battery pack and reinstall it.
The battery pack is exhausted. → Charge or replace the battery pack.
Poor battery contact due to dirt or damage. → Clean the battery terminals. If the issue persists, contact your dealer or an authorized service center.
No sound comes from the speaker (or weak/intermittent sound).
The volume level is too low. → Rotate the volume control knob to increase the audio level.
The battery voltage is low. → Charge or replace the battery pack.
The antenna is loose or improperly installed. → Turn OFF the radio, then reassemble the antenna properly.
The speaker is blocked or damaged. → Clean the speaker surface. If the issue persists, contact your dealer or an authorized service center.
Unable to communicate with other group members.
Frequency or signaling settings are inconsistent. → Ensure all radios in your group are configured to the same frequency and signaling (CTCSS/DCS) settings.
The distance between radios is too far. → Move closer to other group members to ensure you are within range.
Unwanted noise or other calls appear on the channel.
Interference from other users on the same frequency. → Change to a different frequency or increase the squelch level.
No sub-audible signaling (CTCSS/DCS) is set. → Set a sub-audible signaling code for all radios in the group to filter out unwanted interference. Note: Signaling settings must be identical across all handheld units in the group.
Excessive background noise during communication.
The radios are too far apart. → Move closer to other group members to ensure you are within range.
Obstructed communication path (e.g., tall buildings, basements). → Move to an open, flat, or elevated area to improve signal line-of-sight.
Electromagnetic interference. → Move away from devices or environments that may cause high electromagnetic interference (e.g., power substations, large motors).
End Tone Configuration Issues
The "End Tone" option is missing from the menu.
Outdated firmware. → This feature is only available in firmware version V1.13 and later. Please update your device to version V1.14 or later to access this functionality.
DC1200 signaling end tone is not heard through the repeater.
Repeater decoding failure. → The repeater may have the signaling decoding function disabled or incompatible. Please verify that the repeater is configured to support/pass through the DC1200 signaling protocol.
USING THE MENU
You can use the Menu to set infrequently changed values or function settings. The transceiver has two types of Menu modes, as shown below.
Using the Basic Menu Setting
Example: Selecting a 25 kHz tuning step
1. Press the Menu button.

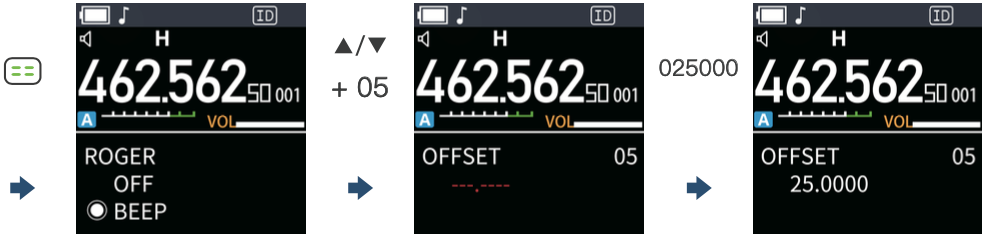

2. The Menu interface is now displayed.
3. Press the "Up" button multiple times until you reach Menu Option 05.
4. Manually enter the Offs et number on the keypad, inputting 025000 here.
Using the Initial Set mode
Example: Setting the AUTOLOCK for 10 Seconds
1. Press the Menu button.
2. The Menu interface is now displayed.
3. Press the "UP" button multiple times until you reach menu option 48.
4. Continue pressing the "UP" button multiple times until you reach the 15-second option.
5. Press the menu button again to save.
Set mode items
| Number | Menu | Description |
| 00 | ROGER | OFF: No tone at the end of transmission. BEEP(End Tone): The default end of transmission tone. DC1200: A distinctive signaling end tone. |
| 01 | TXP | High Power: High power transmission on the current frequency or channel. Medium Power: Medium power transmission on the current frequency or channel. Low Power: Low power transmission on the current frequency or channel. |
| 02 | SQL | 0~9: Squelch levels range from 0 to 9, with lower levels being more prone to interference and higher levels having reduced sensitivity. Setting the level at 5 is advised. |
| 03 | STEP | 2.5K、5K、6.25K、10K 12.5K、20K、25K 30K、50K: In frequency mode, pressing the up or down key changes the step value of the frequency. |
| 04 | S-D | OFF: In frequency mode, turn off the offset between the transmit and receive frequencies; it is off by default. +: In frequency mode, the transmit frequency is equal to the receive frequency plus the offset frequency, typically used for accessing repeater stations. -: In frequency mode, the transmit frequency is equal to the receive frequency minus the offset frequency, typically used for accessing repeater stations. |
| 05 | SET | 000.000~999.995: In frequency mode, the difference between the transmit and receive frequencies can be adjusted (whether an offset is applied is controlled by the offset direction setting). |
| 06 | R-CTCSS | OFF: Turn off the analog sub-audio (press 0 in the sub-audio frequency selection list for a quick shutdown). 67.0~254.1: Use the up/down keys to select from the standard sequence of analog sub-audio tones; alternatively, you can enter non-standard sub-audio tones using the keyboard. |
07 | T-CTCSS | OFF: Deactivate analog sub-tone (press 0 in the sub-tone selection list for rapid deactivation). 67.0~254.1: Navigate through the standard sequence of analog. sub-tones using the up/down keys; non-standard sub-tones can also be input directly via the keyboard. |
08 | MEN -CH | 001~999: In frequency mode or channel mode, select the channel number to save. If CH is displayed, it indicates the channel is already saved, and the current channel will be overwritten. |
09 | TDR | ON: Enable simultaneous monitoring of two frequencies or channels. OFF: Monitor only the main frequency or channel indicated by the MAIN icon. |
10 | TX-A/B | OFF: The MAIN icon indicates which frequency or channel will be transmitted. If【 Side Key 2 】is set to PTT B, this function is disabled. A: Regardless of where the MAIN icon is selected, transmission occurs only on the frequency or channel of Segment A. B: Regardless of where the MAIN icon is selected, transmission occurs only on the frequency or channel of Segment B. |
11 | MDF-A | Channel Name: In channel mode, display the channel name. Channel Frequency: In channel mode, display the channel frequency. Channel Number: In channel mode, display the channel number. |
12 | MDF-B | Channel Name: In channel mode, display the channel name. Channel Frequency: In channel mode, display the channel frequency. Channel Number: In channel mode, display the channel number. |
13 | R-DCS | OFF Turn off digital sub-tone (press 0 in the sub-tone selection list for a quick shutdown). D023N~D754I Select the standard sequence of digital sub-tones using the up/down keys. |
14 | T-DCS | OFF Disable digital sub-tone (press 0 in the sub-tone selection list to quickly turn it off). D023N~D754I Use the up/down keys to select from the standard sequence of digital sub-tones. |
15 | SCAN CTCSS | Scan Activated In frequency mode, scan for analog sub-tones set by other transmitters on the current frequency; the scan will automatically stop when one is found. (Not available in channel mode) |
16 | SCAN DCS | Scan Activated In frequency mode, scan for digital sub-tones set by other transmitters on the current frequency. (Not available in channel mode). |
17 | CDCSS SAVE MODE | All If using the scan for analog sub-tone or digital sub-tone function, once a sub- tone is detected, it is automatically saved as the receive and transmit sub-tone for the current frequency. Receive Scanning for analog or digital sub-tones will automatically save the detected sub-tone as the receive sub-tone for the current frequency. Transmit When scanning for analog or digital sub-tones, the detected sub-tone is automatically saved as the transmit sub-tone for the current frequency. |
18 | SCAN ADD | Add If the current channel needs to be included in the scan, it should be set to add status. Delete If the current channel should not be scanned, set it to delete status. |
19 | CH- NAME | Default settings: Channels 1-10, Workgroups 1-10, Repeaters 1-10. You can assign a name to the current channel or customize it through programming software. |
20 | DELCH | 001-999 Delete the stored information of the current channel; if CH-001 is displayed, it means the channel is already saved. If 001 is shown, the channel is free and has no stored information, making the operation invalid. |
21 | RX END TAIL | OFF No beep after receiving. GSTAR If the transmitting device activates the tail tone elimination feature, the receiver will hear a simulated GSTAR signal beep. If this feature is not activated, the receiver will first hear the persistent click sound. |
22 | RP-STE | 1-10s When transmitting through a repeater, after the sender releases the PTT button and the device switches to receive mode, the delay from the repeater can cause a momentary signal and noise to be received. Adjusting the value of this menu item properly can prevent noise in the device during repeater transmission. OFF If the noise is needed to confirm whether the repeater is working, this menu can be turned off. |
23 | TAIL PHASE | None Default is set to 90 degrees. 120 degrees 180 degrees 240 degrees Select the appropriate phase according to different repeaters to eliminate the click end tone. |
24 | RPT-RL | 1-10s When relaying signals through a repeater, to confirm whether the repeater has relayed the signal for the device, utilize the delay time when the repeater stops transmitting. This allows the device to confirm that the signal has been relayed. This menu item adjusts the duration of the noise that occurs for this confirmation. |
25 | S-CODE ( Squelch Tail Eliminate) | OFF Turn off this feature if the noise is not needed. |
26 | DTMF CODE | OFF Turn off DTMF encoding. BOT Press the PTT button to transmit a DTMF code. EOT Press and release the PTT button to transmit a DTMF code. BOTH Release the PTT button to transmit a DTMF code. |
27 | DTMFST | OFF No sidetone is emitted for keypad tones during transmission. PTT + ID The device emits the tone sound when keypad tones are used during transmission. ID The device emits the tone sound during automatic ID transmission. Side-tone The device emits the tone sound for both keypad and automatic ID transmissions. |
28 | TONE | TONE 1000hz Plays a specific tone when Side Key 3 is pressed while pressing PTT. 1450hz 1750hz 2100hz |
29 | PTT- LT | 0Ms、100Ms、200Ms 400Ms、600Ms 800Ms、1000Ms Delay time before automatic encoding. |
30 | VOX | OFF Turn off voice-operated transmission (VOX). Level 1-9 Activate voice control sensitivity, where level 1 is the most sensitive and level 9 is the least sensitive. |
31 | VOX DELAY | 0.5sec~2.0sec From 0.5 to 2.0, with 0.1 increments as options. |
32 | VOICE -PRI | OFF Turn off encryption to ensure compatibility with standard analog systems. Encryption 1, Encryption 2, Encryption 3. Activate frequency hopping with the option to select an encryption group. Only devices with matching encryption groups can communicate. Once enabled, accessing repeaters is not possible. |
33 | TOT(Tim -Out Timer) | OFF Disable transmission time limit. 30 sec、 60 sec、120 sec 240 sec、 480 sec Set the maximum transmission time when PTT is pressed. |
34 | W/N | Wide Operate in wide band. Narrow Operate in narrow band. |
35 | BCL | OFF Turn off busy channel lock. ON Activate busy channel lock. |
36 | STE | OFF Release the PTT without sending a shutdown code, typically used in relay transfer to produce noise, confirming if the signal from the device is being relayed. ON After releasing the PTT button, the device emits a shutdown code to suppress the momentary noise at the receiving end. |
| 37 | SC-REV (Scan Resume) | Time Time-controlled scanning pauses on signal detection, holding for about 5 seconds before resuming, even if the signal persists. Carrier Carrier-controlled scanning pauses on signal detection and remains on that frequency until the signal ceases, with a 2-second delay before scan resumes to allow response transmission. Search Search scanning exits scan mode and stays on the frequency when a signal is detected. |
38 | SAVE | OFF Turn off power-saving mode. Normal Saving Engage standard power-saving. Super Saving Engage enhanced power-saving. Deep Saving Engage maximum power-saving. |
39 | AL- MOD | Send Alert Code Only send the alert code when SOS button is pressed. Send Alert Tone Send an alert tone when SOS button is pressed. Local Alarm Only the device emits an alarm sound when SOS is pressed. |
40 | PF2 | FM Radio Activates the FM radio function. Transmit Power Switch between high and low power. Scan Scan frequencies or channels. Search Scan frequencies and sub-tones. Weather Forecast Activate the weather forecast function. Remote Sub-tone Scan Activate remote sub-tone scanning. PTT B Set Side Key 2 as the transmit button for Band B. |
41 | PF2 LONG PRESS | FM Radio Activates FM radio function. Transmit Power Switch between high and low power. Scan Scan frequencies or channels. Search Scan frequencies and sub-tones. Weather Forecast Activate the weather forecast function. Alarm Emit an alarm (similar to SOS button function). DTMF Enter DTMF encoding mode. |
42 | PF3 | FM Radio Activates FM radio function. Transmit Power Switch between high and low power. Scan Scan frequencies or channels. Search Scan frequencies and sub-tones. Weather Forecast Activate the weather forecast function. Alarm Emit an alarm (similar to SOS button function). DTMF Enter DTMF encoding mode. |
43 | TOP KEY | Invert Frequency Switch the inversion of transmit and receive frequencies; toggle off-network mode where transmit and receive frequencies are the same. DTMF Enter DTMF encoding mode. Weather Forecast Activate the weather forecast function. Search Scan frequencies and sub-tones. |
44 | ABR Auto Backlight | Always-On Keep the backlight always on, not turning off automatically. 5s、10s、15s、20s 30s、1min、2min、3min Set the duration after which the system automatically turns off the backlight without any operation. |
45 | VOICE | OFF Turn off Chinese voice prompts during menu operations. ON Enable Chinese voice prompts during menu operations. |
46 | BEEP PRO -MPT | OFF Disable the beep/buzz sound for keyboard operations. ON Enable the beep/buzz sound for keyboard operations. |
47 | MENU EXIT TIME | 5s、10s、15s、20s 25s、30s、35s、40s 45s、50s、60s Set the duration after which the system automatically exits to standby mode without any operation. |
48 | AUTO -LOCK | OFF Do not automatically lock the keyboard; keep it always active. 5s、10s、15s Set the duration after which the system automatically locks the keyboard with no operation; only PTT, Side Key 2, and Side Key 3 remain usable. Press and hold the FM key to unlock. |
49 | POWER ON MSG | Default Icon Default to Talkpod logo. Battery Voltage Display current battery voltage. |
50 | LANGU -AGE | CHINESE Menu displays in Chinese. ENGLISH Menu displays in English |
51 | ANI NAME | System default: Machine 1-50, HAM1-HAM10. Name the device or customize it via programming software, including call sign. |
52 | Instruc -tions | View Instructions Display a QR code that can be scanned with a smartphone to access the user manual for the current model. |
53 | RESET | Frequency Mode Clears all channels, but not the set function options. All Erases all channels and function settings, restoring to factory defaults. |
54 | VERSI -ON | Version Information View the current software version. |
Notes
·The menu operates in a single-level mode. When entering the menu, you need to switch 【MAIN】to indicate whether to set segment A or B. When dual PTT mode is activated (factory default sets【Side Key 2】as PTT2), pressing the PTT button will transmit on segment A frequency, even if【MAIN】is displayed on segment B.
·For any option with numbers, you can directly enter the number on the keyboard to quickly select it. If there are only on and off options, 1 represents on, and 2 represents off.
·In versions before software V2.4, some menu text, order, and functions may slightly differ. Understand the meaning literally, as there are no significant differences.

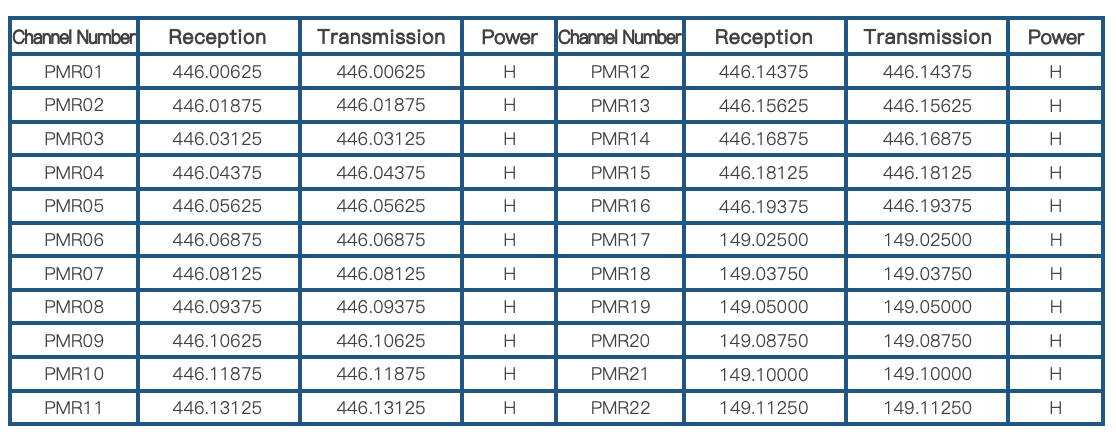

Frequency Charts
TRADEMARKS
TALKPOD, TALKPOD Inc. and the TALKPOD logo are registered trademarks of TALKPOD Incorporated (Japan) in Japan, the United States, the United Kingdom, Germany, France, Spain, Russia, Australia, New Zealand, and/or other countries.
TALKPOD is not responsible for the destruction, damage to, or performance of any TALKPOD or non-TALKPOD equipment, if the malfunction is because of:
·Force majeure, including, but not limited to, fires, earthquakes, storms, floods, lightning, or other natural disasters, disturbances, riots, war, or radioactive contamination
·The use of TALKPOD transceivers with any equipment that is not manufactured or approved by TALKPOD.
Related Articles
A36SE Basic Manual
Thank you for choosing this Talkpod product. This product is designed and built with Talkpod’ s state of the art technology and craftsmanship. With proper care, this product should provide you with years of trouble-free operation. IMPORTANT READ ALL ...Talkpod F40 Quick Start Guide（UK）
IMPORTANT Important Safety & Compliance Information Read this reference guide completely before attempting to operate the unit. Before using this radio, refer to the important operating instructions for safe usage and RF energy awareness and control ...N39plus Advanced Manual
IMPORTANT READ ALL INSTRUCTIONS carefully and completely before using the transceiver.SAVE THIS INSTRUCTION MANUAL — This instruction manual contains important operating instructions for the transceiver. Important Safety & Compliance Information ...Manual avanzado del N39plus (Español)
IMPORTANTE LEA ATENTA Y COMPLETAMENTE TODAS LAS INSTRUCCIONES antes de utilizar el transceptor. CONSERVE ESTE MANUAL DE INSTRUCCIONES — Este manual contiene instrucciones importantes para el funcionamiento del transceptor. Información importante ...Virtual HAM radio‘s SIM data plan- Supported Carriers & Frequency Bands
Your radio comes pre-configured for seamless network registration—no manual APN or network configuration is required. The device automatically detects and connects to the strongest available partner network. Below is the official reference list of ...
